Txoj Cai Ua Haujlwm

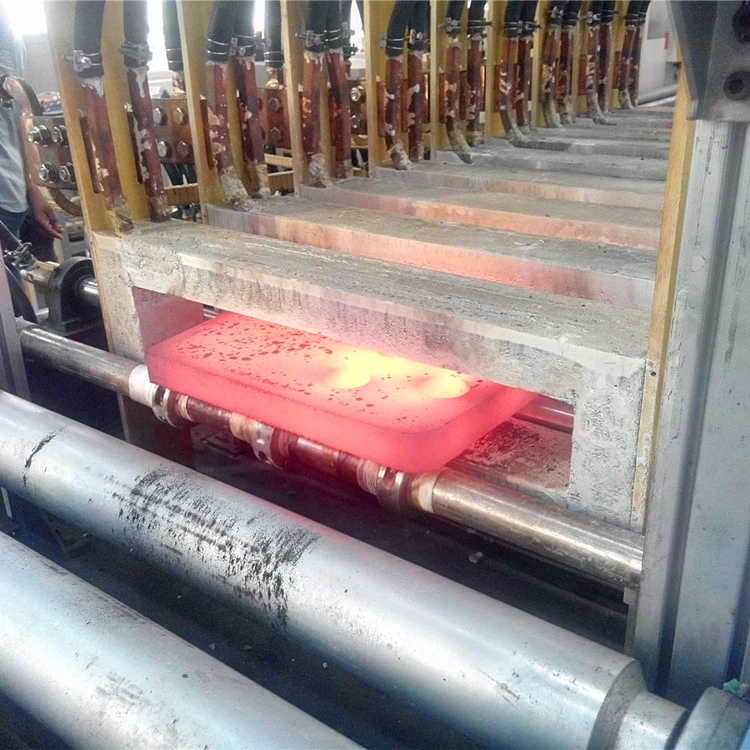

Qhov system no ua haujlwm ntawm electromagnetic induction eddy-tam sim no cua sov txoj kev xav. High-performance IGBT fais fab mov outputs ruaj khov alternating tam sim no, generating sib txawv alternating magnetic teb los ntawm tshwj xeeb-ua segmented induction coils. Thaum cov phaj hlau taug kev los ntawm thaj chaw sib nqus, qhov sib npaug ntawm cov eddy tam sim no tsim hauv cov khoom siv hlau. Thaum tshav kub kub yog tsim los ntawm inherent kuj ntawm steel daim hlau kom workpieces tau rhuab synchronously ntawm sab hauv mus rau sab nraud.
Ua tiav Steel Phaj Induction Cua Sov Chaw Tsim Khoom muaj ntau yam haujlwm tseem ceeb kom paub txog kev ua haujlwm tsis siv neeg tsis siv neeg.
01
IGBT Medium-Frequency Induction Power Unit
Core fais fab tivthaiv nrog lub zog muaj zog thiab tsis tshua muaj cua sov. Muaj peev xwm ntawm 24-teev ruaj khov ua haujlwm tsis tu ncua thiab tsis muaj zog hloov pauv kom haum rau ntau hom steel-phaj cov ntaub ntawv thiab kev tsim ua haujlwm.
02
Segmented Custom Induction Cua sov Coils
Optimized rau tej steel-phaj qhov ntev. Segmented coil layout ua kom muaj cua sov zoo sib xws. Kev hloov nrawm nrawm txhawb cov qauv tsim khoom sib txawv thiab txhim kho cov cua sov sib xws hauv ob qho tib si tuab thiab dav cov lus qhia.
03
Intelligent Closed-Loop Temperature Control System
Ua haujlwm nrog high-precision infrared kub sensors thiab PLC tswj kho vajtse. Real-time kub sau thiab tsis siv neeg parameter kho kom zoo cua sov stability thiab repeatability.
04
Variable-Frequency Conveying and Positioning System
Deviation-resistant roller conveyor kom ruaj khov thiab synchronous steel-phaj thauj. Adjustable khiav ceev sib txawv ntawm cov cua kub lub voj voog uas yuav tsum tau ua kom zoo ib yam.
Core Product Advantages
Ruaj khov thiab tsis sib xws cua sov zoo
Segmented ywj siab tswj cua sov ua ke nrog multi-point real-time kub saib xyuas tso cai los ntawm-thickness uniform cua sov rau steel daim hlau. Thermal deformation, nto oxidation thiab defect npaum li cas yog txo. Txhua batch ntawm steel daim hlau tuav ruaj khov hardness, flatness thiab mechanical kev ua tau zoo.
High Energy-Saving thiab Eco-Friendly Performance
Induction cua sov yog cov cua sov sab hauv yam tsis muaj qhov nruab nrab kub hloov pauv. Tawm tsam cov khoom siv roj hluav taws xob thiab cov khoom siv hluav taws xob ua haujlwm, cov kab tsim khoom no txo cov kev siv hluav taws xob tag nrho los ntawm 30% -50%. Tag nrho cov txheej txheem yog flameless, emission-dawb thiab plua plav-dawb, ua raws li niaj hnub ntsuab-tsim kev cai.
Kev ua haujlwm siab ntau lawm thiab kev sib tw dav
Cov cua kub ceev ua kom luv thermal ua lub voj voog thiab txhawb nqa cov khoom loj tsis nres. Nws tuav cov pa roj carbon steel, alloy steel, hnav-resistant steel, stainless hlau thiab lwm yam hlau daim hlau, npog nyias-gauge, nruab nrab thiab hnyav-duty tuab daim hlau. Cov kab tuaj yeem sib xyaw ua ke rau hauv cov neeg siv khoom 'cov haujlwm ua haujlwm steel uas twb muaj lawm.
Kev txawj ntse thiab kev nyab xeeb
Puv-automatic PLC tswj txo qis kev koom tes hauv phau ntawv thiab ua kom tsis muaj neeg ua haujlwm tas li. Ntau cov txheej txheem tiv thaiv npog dhau-tam sim no, dhau-voltage, dhau-kub thiab tiv thaiv dej tsis txaus. Modular kev tsim kho yooj yim txij nkawm txhua hnub thiab txuas ntxiv lub neej kev pab cuam ntawm cov khoom tseem ceeb
Technical Parameters
Qhov no induction cua sov manufacturing kab yog tag nrho customizable rau ntau lawm hom phiaj. Nws ua cov hlau phaj nrog tuab ntawm 5mm txog 120mm thiab dav li ntawm 200mm txog 3000mm. Cov cua kub cua sov tuaj yeem hloov kho los ntawm qhov kub thiab txias mus rau 1200 degree, thaum qhov ntsuas kub tswj qhov tseeb nyob hauv ± 3 degree.
Daim ntawv thov Scenario
Cov Hlau Phaj Induction Cua sov Manufacturing Line pab ntau yam kev lag luam steel-ua daim ntawv thov. Kev siv ib txwm muaj xws li kub-rolling preheating, quenching-tempering tshav kub kho, residual-stress tshem tawm tom qab txiav, thiab annealing kev kho mob rau txawv steel phaj. Nws tseem suav nrog kev tsim hluav taws xob rau marine steel daim hlau, choj vaj huam sib luag daim hlau, automotive structural steel, engineering hnav-resistant daim hlau, nrog rau thermal ua rau tshwj xeeb puas hlau daim hlau.
Cov lus nug nquag
Cov kab tsim khoom no puas tuaj yeem txuas nrog kuv cov cuab yeej tsim khoom uas twb muaj lawm?
Yog lawm. Ua tsaug rau cov qauv tsim qauv, cov kab tuaj yeem cuam tshuam nrog cov khoom siv sab saud thiab qis ntawm qhov chaw. Peb kho qhov layout thiab khiav ceev kom phim koj qhov kev ua haujlwm zoo li qub.
Dab tsi ntawm cov ntaub ntawv steel tuaj yeem ua txoj kab no?
Nws ua haujlwm zoo nrog carbon steel, alloy steel, hnav-resistant steel, stainless hlau thiab lwm yam hlau nplaum-conductive hlau daim hlau. Peb fine-tune coil thiab fais fab parameter kom haum cov khoom sib txawv.
Kuv yuav tau txais daim ntawv txais nyiaj li cas rau kuv qhov kev yuav khoom?
+
-
Cov khoom tseem ceeb tau txais kev txhim khu kev lag luam-qib tsim nrog qhov tsis ua haujlwm tsawg. Kev ua haujlwm txhua hnub feem ntau tsom rau kev tshuaj xyuas dej-circuit thiab tu coil nto. Ua tiav kev ua haujlwm-kev tswj xyuas kev taw qhia yuav muab rau koj pab neeg.
Peb cov khoom tsim thiab khoom siv
Peb Lub Zog
Tsom ntsoov rau induction cua sov teb rau ntau xyoo, kev nkag siab tob ntawm steel phaj thiab hlau thermal-kev kho cov txheej txheem
Muaj peev xwm tsim kev tsim vaj tsev muaj peev xwm, txhawb nqa ua tiav cov phiaj xwm tig-key ntau lawm
Mature IGBT lub zog siv tshuab, ruaj khov 24-teev kev ua haujlwm tsis tu ncua rau kev tsim khoom loj
